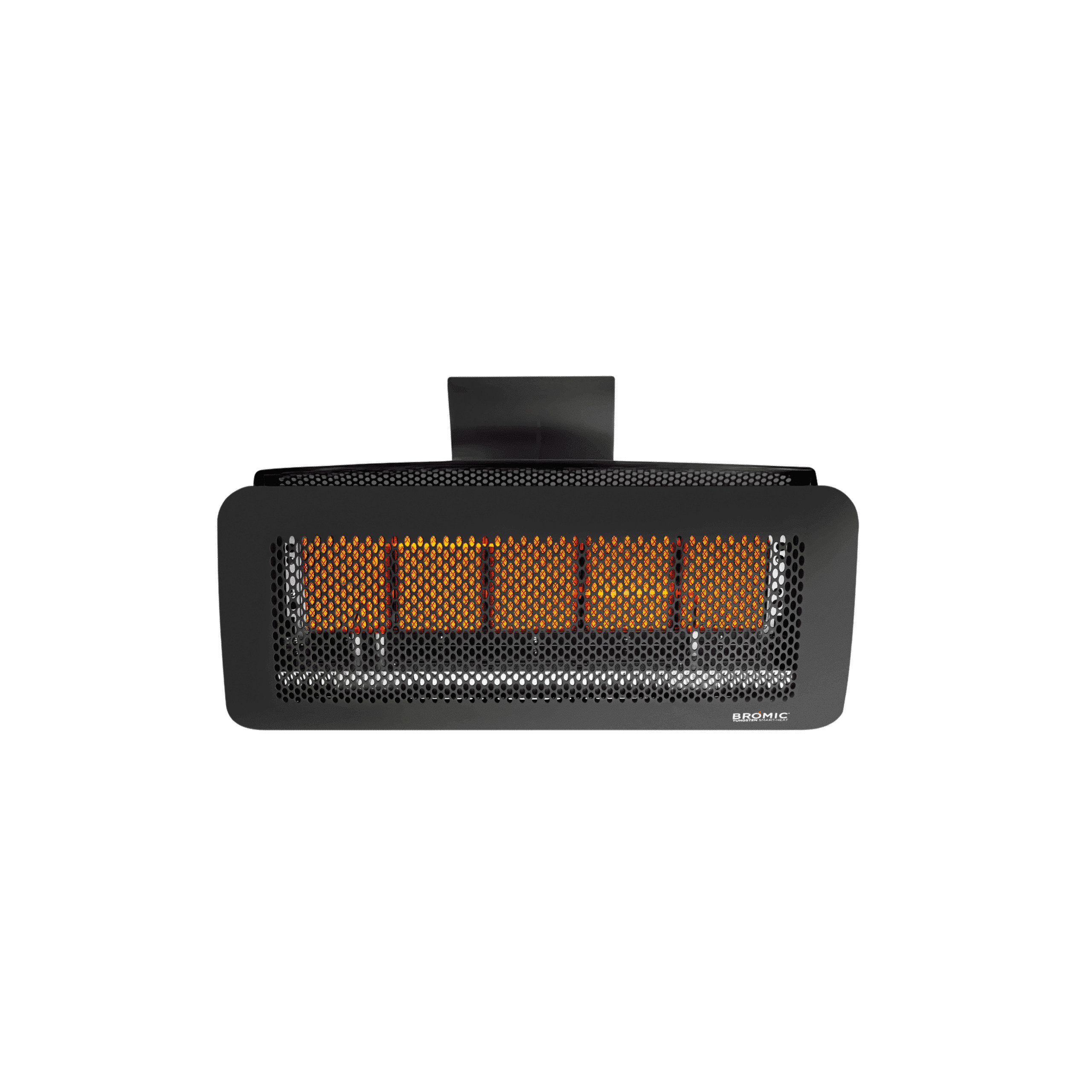

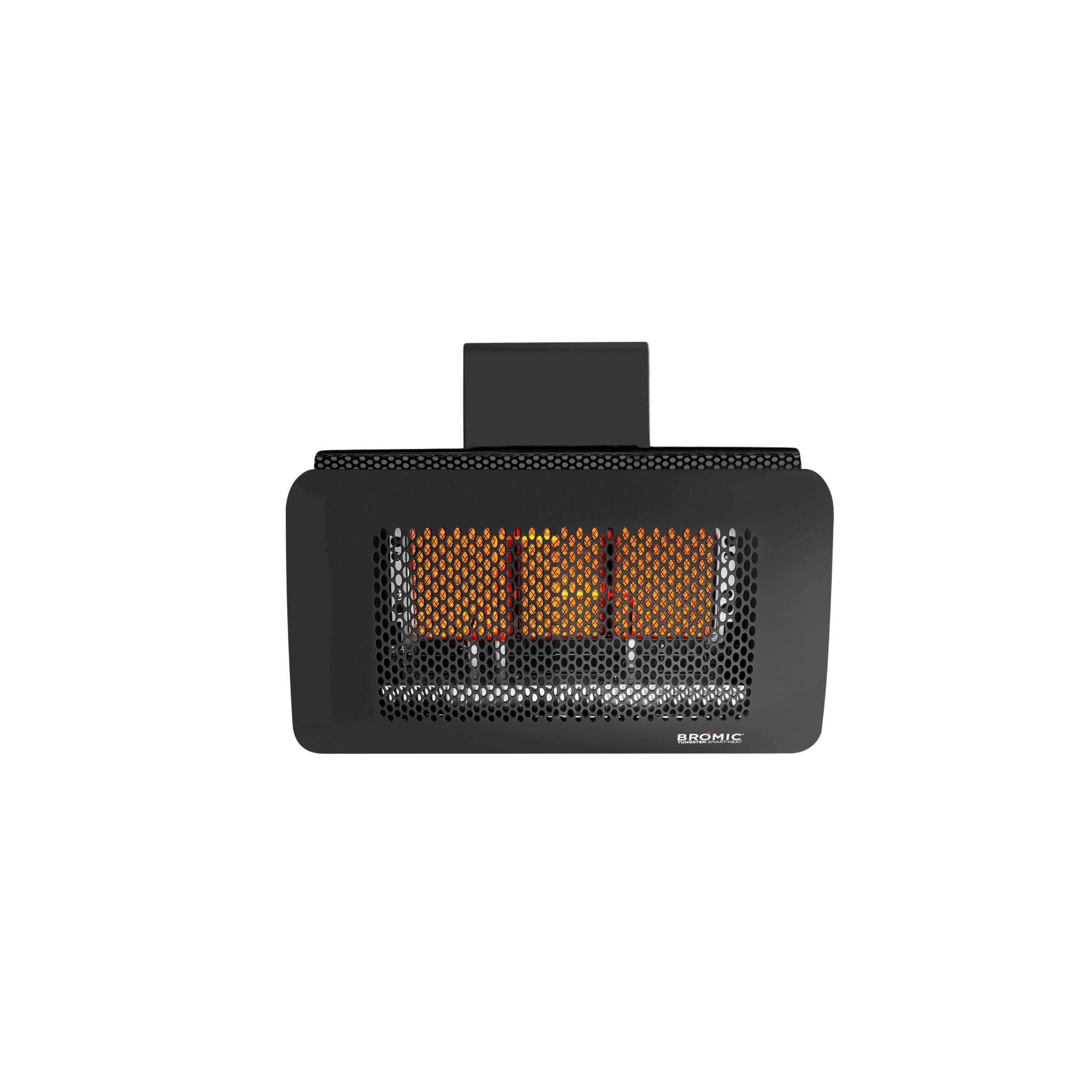

Tungsten Smart-Heat® Gas
Turn up the heat with the Bromic Tungsten Smart-Heat® Gas Series. This powerful radiant heater quickly heats up outdoor areas of up to 215ft2 , providing a warming red glow all year around. With a matte black design and wind resistance of up to 8mph, the heater will keep you and your guests warm at any time of the year. Choose between 26,000 BTU and 43,000 BTU heating power and natural gas or propane (LPG) options.

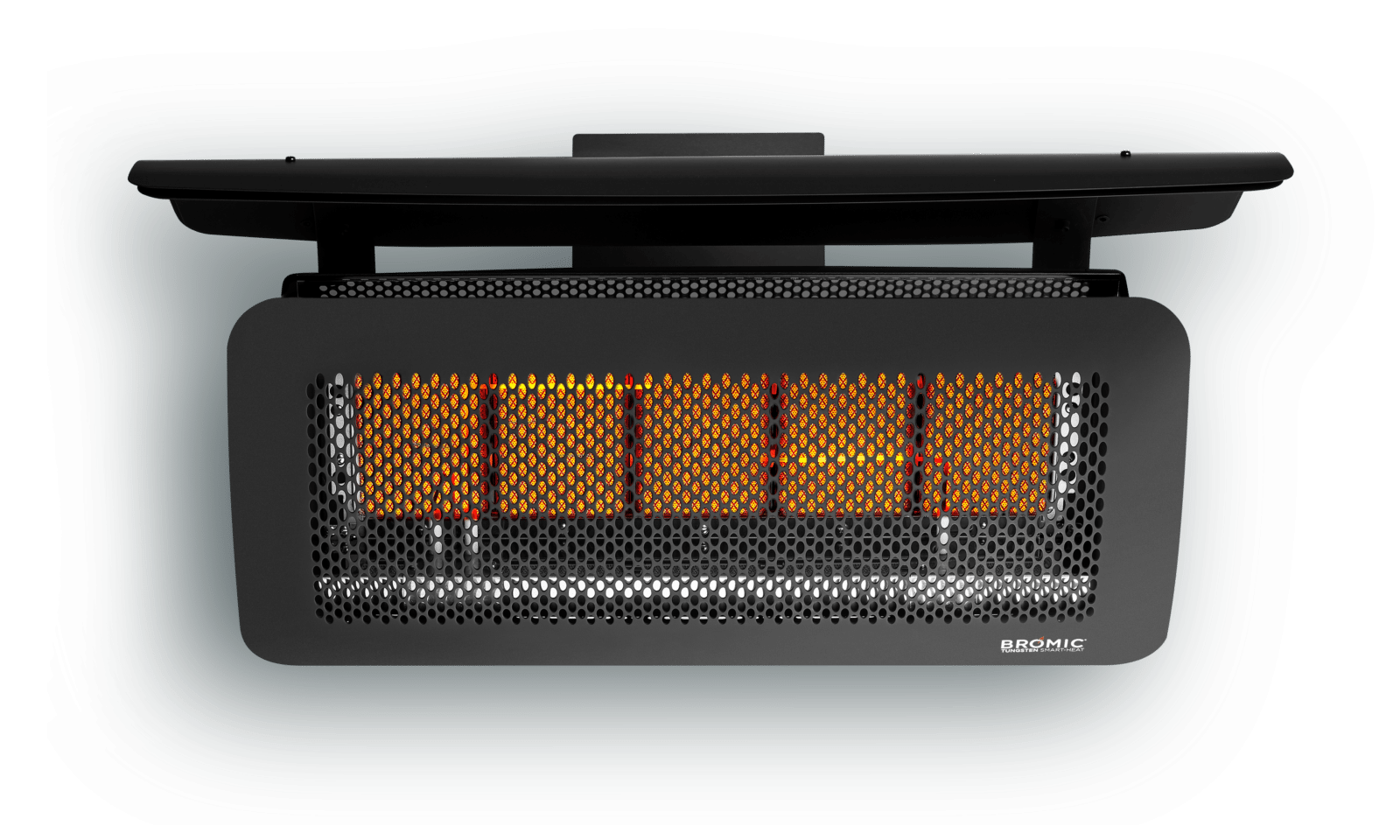

For low clearance areas, we recommend a heat deflector to protect the mounting surface. This accessory will also provide improved weather resistance and a more directional heat output.
Recommended Controls & Accessories
Bromic control and accessory options make the operation of your outdoor heater even more versatile. Choose from wall and ceiling mounting accessories on/off remote controls, or smart home automation integration for a personalized user experience.
Features & Benefits
Built in an industrial design style with premium stainless-steel construction, the Tungsten Gas heater provides market-leading heat distribution to large outdoor spaces.
-
More
Close
Patented Performance
Superior wind resistance (up to 8mph), thanks to Bromic’s patented screen and ionization probe technology.
-
More
Close
Ultra-Durable Design
Matte black stainless-steel body for reliable heating performance and durability.
-
More
Close
High Performance Mesh Screen
Maximize performance and deliver a superior spread of heat with the unique honeycomb mesh screen.
-
More
Close
Pivot Arm Bracket
For greater directional control of the heater (rotates 25 degrees on each side), making it easy to adjust the flow of heat, so radiant heat is delivered where it’s needed.
-
More
Close
Mutliple Installation Options
A versatile range of ceiling and wall mounting options makes it easy to reclaim valuable floor space.
-
More
Close
Enhanced Safety Features
An integrated “Flame Failure Safety Shut-off Control” turns the heater off immediately should it not re-ignite for any reason
-
More
Close
Set and forget
Simple and easy to use, with smart system compatibility and automated re-ignition.
-
More
Close
Patented Direct Ignition System
Instantaneous ignition, whenever you require it, without the need for a pilot light.
-
More
Close
Environmental Efficiency
Slow-release ceramic burners are supremely efficient and the most environmentally-friendly gas-fired heating method available.
Product Resources
Discover everything you need to know about the Tungsten Gas heater series, from heat blooms and mounting options to detailed specifications and FAQs.
Specifications
| MODEL NUMBER |
300 SERIES |
500 SERIES |
| FUEL TYPE |
LPG | NG |
LPG | NG |
| OUTPUT |
7.6kW |
12.6kW |
| COLOR |
MATTE BLACK |
MATTE BLACK |
| WEIGHT |
15kg |
20kg |
| MODEL # |
BH0210001-1 (NG)
BH0210002-1 (LPG) |
BH0210003-1 (NG)
BH0210004-1 (LPG) |
| HEAT AREA |
15 m2 |
20 m2 |
| ELECTRICAL CONNECTION |
110V/2A |
110V/2A |
| MINIMUM FLOOR CLEARANCE |
2400mm |
2400mm |
| APPROVAL CERTIFICATION |
Intertek 4009079 |
| WARRANTY |
2 years (excluding maintenance items*) |
* Excludes hoses and igniters
| CONTROL OPTIONS |
300 SERIES |
500 SERIES |
| AFFINITY ON/OFF |
✓ |
✓ |
| MANUAL WALL SWITCH |
✓ |
✓ |
* Please visit Bromic Controls for more information.
Downloads
Dimensions
Heat Blooms
Mounting Options
The heater can be wall mounted or hung from the ceiling (with optional Ceiling Post Mount). The optimum height is 8 feet from the floor to the bottom of the heater. If the distance above the heater is less than 42 inches or if the heater will be open to the elements, a heat deflector is recommended.
Clearances
Installation
Installation must be carried out by a licensed and authorized technician in accordance with local building codes. Please refer to our installation manual for further details.
